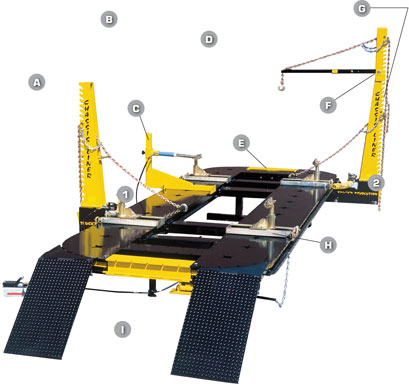

Chassis Liner Truck' N Revolution 20' 2-Towers – Air Hydraulic Tilt Bed

Chassis Liner Truck’ N Revolution 20′ 2-Towers – Air Hydraulic Tilt Bed 20′ Bed Length Bed Plumbed for Air (2) 10 Ton Slotted Towers 2 Air/Hydraulic pumps with gauges 2 Tower Rollers (2) 10′ Chains with slip hooks 4 Adjustable unibody tie-downs Removable front and rear cross members 15-ton Ram on Lift with pump Wheel stop 2 Heavy-Duty Rams 27″ Laser Cut Treadways 60″ Tower height 27″ Working height Weight: 6900 lbs. Optional Accessories Extra Towers Slotted (Air), #832200 Tower Extension, #682010 Overhead Puller, #684065 Power Pusher with 10-ton Ram & hose, #784255 Down-Pull Roller, #682020 Double Tower Roller, #682017 Chain Lock, #684070 Specifications TNR 20 #832075 Length with Towers Extended 20″ (6.12m) 24′ 8″ (7.55m) Width with Towers Extended 86″ (2.19m) 142″ (3.62m) Height with Towers Extended 7′ 3″ (2.22m) 9′ 3″ (2.83m Treadway Width 27″ (.69m) Working Height (Floor to Top of Bed) 27″ (.69m) Lifting Capacity 15-Ton Ram on Lift Hydraulic Power 10-Ton Per Tower Hydraulics Air –100PSI Weight 6,900 lbs. (3130 kg) Chassis Liner Truck ‘N Revolution™ 20-foot Deck Frame Machine Two towers with air hydraulic tilt bed. Pull Up to 10 Tons! 360° Pulling Wheel-less Towers 3 Pulls per Tower 1. New! Swivel Design – ExclusiveSwivel design provides versatility of pulling from multiple angles and corners 2. Exclusive! Pulling Capabilities – Multiple pulling capabilities up to 3 pulls per tower! Power Team – Power Team (OTC) air/hydraulic pumps with gauge Exclusive! Laser cut Top Plate – 1/2″ laser-cut top plate plus totally enclosed treadways for additional strength New! Beds – Beds are plumbed for air to eliminate the need for all those air hoses! Anchoring- Anchoring comes standard with adjustable, plated Measure Rite™ Tie-Downs Heavy-Duty Lift – Heavy-Duty 15- ton lift includes 3rd pump for the lift Chain Slots and Tie-downs – Chain slots and tie-downs along the outside of the 27″ treadways as well as the center, allow for multiple quick anchoring and tie-down options. New bolt-on system allows you to upgrade frame racks as your business grows

Key features

• 20′ Bed Length
• (2) 10 Ton Slotted Towers
• 2 Air/Hydraulic pumps with gauges
• 2 Tower Rollers
• (2) 10′ Chains with slip hooks
• 4 Adjustable unibody tie-downs
• 15-ton Ram on Lift with pump
• Wheel stop
• 2 Heavy-Duty Rams
• 27″ Laser Cut Treadways
• 60″ Tower height
• 27″ Working height
• Weight: 6900 lbs
• Slotted (Air), #832200
• Tower Extension, #682010
• Overhead Puller, #684065
• Power Pusher with 10-ton Ram & hose, #784255
• Down-Pull Roller, #682020
• Double Tower Roller, #682017
• Chain Lock, #684070
• Pull Up to 10 Tons!
• 360° Pulling
• Wheel-less Towers
• 3 Pulls per Tower
• Specifications TNR 20 #832075
• Length with Towers Extended 20″ (6.12m) 24′ 8″ (7.55m)
• Width with Towers Extended 86″ (2.19m) 142″ (3.62m)
• Height with Towers Extended 7′ 3″ (2.22m) 9′ 3″ (2.83m
• Treadway Width 27″ (.69m)
• Working Height (Floor to Top of Bed) 27″ (.69m)
• Lifting Capacity 15-Ton Ram on Lift
• Hydraulic Power 10-Ton Per Tower
• Hydraulics Air –100PSI
• Weight 6,900 lbs. (3130 kg)
• additional_properties: {}
• source_options: [{‘id’: ‘193’, ‘display_name’: ‘Check with us if shipping is free to your location’, ‘type’: ‘Configurable_Entry_Checkbox’, ‘required’: False, ‘state’: ‘modifier’, ‘values’: []}]
• minimum_purchase_quantity: 0
• maximum_purchase_quantity: 0

Product specifications

• Specifications: TNR 20 #832075
• Length with Towers Extended: 20″ (6.12m) 24′ 8″ (7.55m)
• Width with Towers Extended: 86″ (2.19m) 142″ (3.62m)
• Height with Towers Extended: 7′ 3″ (2.22m) 9′ 3″ (2.83m
• Treadway Width: 27″ (.69m)
• Working Height (Floor to Top of Bed): 27″ (.69m)
• Lifting Capacity: 15-Ton Ram on Lift
• Hydraulic Power: 10-Ton Per Tower
• Hydraulics: Air –100PSI
• Weight: 6,900 lbs. (3130 kg)
• SKU: CL832075
• UPC: CL832075
• Availability: Factory Shipped -ASK for QUOTE
• Shipping: Calculated at Checkout
• Shipping Information: {“calculated”:true} | Availability: Factory Shipped -ASK for QUOTE | Shipping: Calculated at Checkout
• Condition: NewCondition
