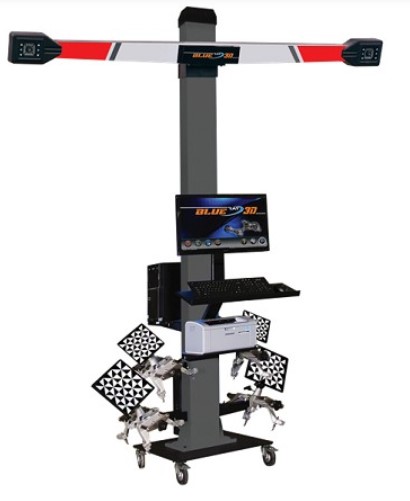

Manatec BLUE RAY 3D EBM 200 – Portable 3D Wheel Alignment Machine for Lift Applications

Manatec BLUE RAY 3D EBM 200 – Portable 3D Wheel Alignment Machine for Lift Applications Mobile 3D Wheel Aligner for Lift Application Vision based 3D Imaging technology using 2 High Performance Cameras Simultaneous Front and Rear wheel alignment (4×4) Capable of measuring vehicles including pick up trucks (such as Dodge RAM 3500 dually) with wheel base of up to 190” Push Pull Runout /Setback / Thrust angle compensation Lift level compensation at adjustment level Unlimited memory for vehicle specifications Option for selection of vehicle specification during alignment Power failure data protection Automatic tracking of Left & Right turns for Caster/Kingpin measurements Adjustment of Camber in wheel Jacked-up position & Toe curve measurement Rear Setback & Track width difference, Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements Effortless Toe (Easy Toe) adjustment program Camber measurement at Zero Toe Drag link adjustment Toe out on Turns & Lock angle measurements Animated pictorial display of angles during alignment Zoom in option for live parameters Two Color Bar display for adjustment of all angles Quick Wheel Alignment program by user defined Data Manager Software for storing alignment results Customer Address in printout & customer data edit option 3-D Pictorial & Two color text printout Multi-lingual program & Voice prompt Two wheel Alignment program by fixing only front two target plates Can be moved between Bays to use in different alignment lifts. Can be used with in-ground as well as on-ground lifts. No calibration during installation. With DELL PC, Monitor, Key board, Mouse & Windows 10 IOT OS Printer NOT Included. Shipping Weight: 610 lbs Made In India. One Year Manufacturer Warranty Included Accessories: 1 Set of Dell PC, Monitor, Keyboard, Mouse (Windows 10) 4 Wheel Brackets for rim sizes 12″ to 24″ 4 Target Plates 2 Turnplates (5,000-lbs Capacity each) 1 Brake Pedal Lock 1 Steering Lock 2 Wheel Stoppers 16 Rim Locking Pins (for Steel Rims with Fancy Disc)

Key features

• Mobile 3D Wheel Aligner for Lift Application
• Vision based 3D Imaging technology using 2 High Performance Cameras
• Simultaneous Front and Rear wheel alignment (4×4)
• Capable of measuring vehicles including pick up trucks (such as Dodge RAM 3500 dually) with wheel base of up to 190”
• Adjustment of Camber in wheel Jacked-up position & Toe curve measurement
• Two Color Bar display for adjustment of all angles
• Quick Wheel Alignment program by user defined
• 3-D Pictorial & Two color text printout
• Two wheel Alignment program by fixing only front two target plates
• With DELL PC, Monitor, Key board, Mouse & Windows 10 IOT OS
• Printer NOT Included
• Shipping Weight: 610 lbs
• Included Accessories: 1 Set of Dell PC, Monitor, Keyboard, Mouse (Windows 10)
• 4 Wheel Brackets for rim sizes 12″ to 24″
• 4 Target Plates
• 2 Turnplates (5,000-lbs Capacity each)
• 1 Brake Pedal Lock
• 1 Steering Lock
• 2 Wheel Stoppers
• 16 Rim Locking Pins (for Steel Rims with Fancy Disc)
• 3D Wheel Alignment – Manatec FOX 3D AUTOBOOM Manatec launched the ‘Auto Boom’ model of 3D Wheel Aligner at
• additional_properties: {}
• source_options: []
• minimum_purchase_quantity: 1
• maximum_purchase_quantity: 1

Product specifications

• SKU: BLUE RAY 3D EBM 200
• UPC: BLUE RAY 3D EBM 200
• Availability: FACTORY SHIPPED
• Minimum Purchase: 1 unit
• Maximum Purchase: 1 unit
• Shipping: Free Shipping
• Shipping Weight: 610 lbs
• Included Accessories: 1 Set of Dell PC, Monitor, Keyboard, Mouse (Windows 10)
• Condition: NewCondition
• Warranty: One Year Manufacturer Warranty
